Dual-aggregation feature compilation network for urban traffic object detection and pedestrian pose estimation

2.1. Overview of DAFCN

The state-of-the-art feature compilation architecture, the YOLO series, achieves high feature compilation performance with relatively low parameter and computational costs. However, its performance in detecting distant small objects in object detection tasks is suboptimal. In action recognition tasks, it struggles to accurately estimate the pose of occluded pedestrians. Therefore, in this paper, DAFCN is developed based on the feature compilation architecture of YOLOv8s. By designing a feature input strategy and a global-local feature aggregation module, and optimizing the overall network structure, it effectively achieves multi-scale feature compilation, as well as the processing of detailed texture features and the capture of global semantic information.

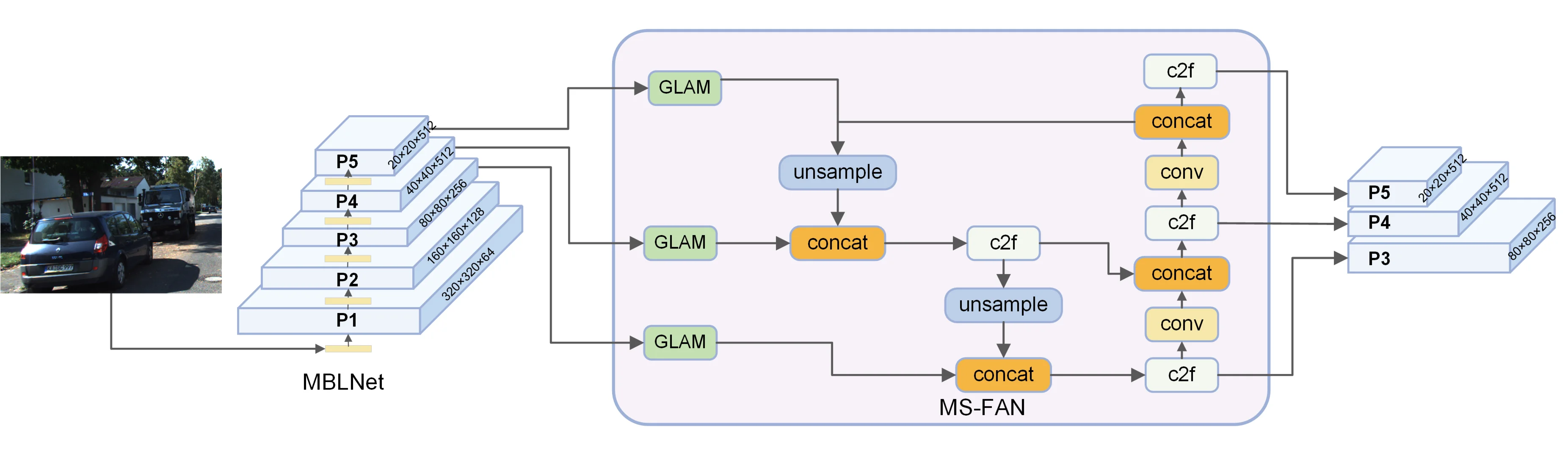

The overall structure of DAFCN is shown in Fig. 1. DAFCN consists of a feature extraction network named MBLNet and a feature fusion network named MS-FAN. In MBLNet, for the input RGB image, it is first converted into a grayscale image with 64 channels using a convolution layer. Then, a four-stage multi-scale feature extraction architecture is applied, resulting in features with channel dimensions of 128, 256, 512, and 512, respectively. The three lowest-resolution features, namely those with channel dimensions of 256, 512, and 512, are fed into the feature fusion network. The detailed structure of MBLNet will be elaborated in Section 3.2 of the paper.

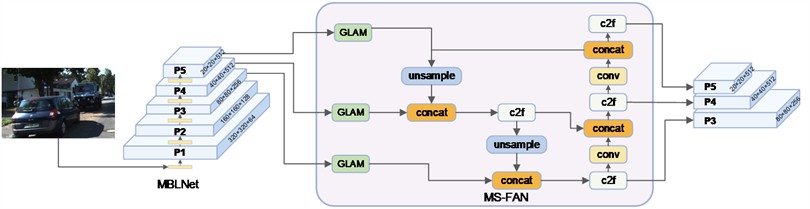

Fig. 1The overall structure of DAFCN

In MS-FAN, the three input feature layers are first aggregated for their global and local features using the GLAM module. Then, the Feature Pyramid Network (FPN) structure and the Path Aggregation Network (PAN) structure are used, respectively, to perform a second round of feature fusion, from bottom to top and top to bottom, for the three feature layers. Finally, three fused feature maps with channel dimensions of 256, 512, and 512 are output. The detailed structure of MS-FAN will be elaborated in Section 3.3 of the paper.

2.2. Multi-branch feature learning network

The multi-branch feature learning network, as shown in Fig. 2(a), consists of four feature learning stages with varying dimensions.

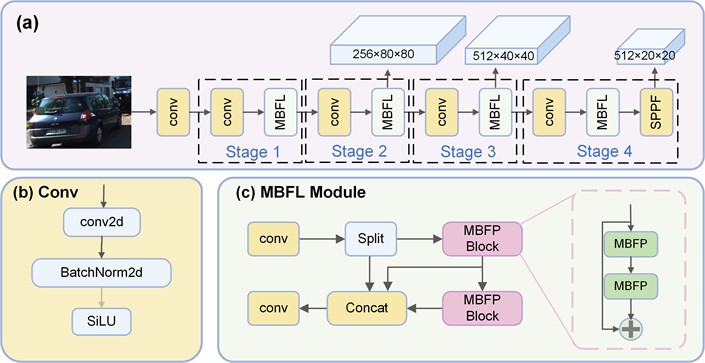

Fig. 2a) Structure of multi-branch feature learning network, b) Conv operation, c) multi-branch feature learning (MBFL) module

In each stage, a Conv operation is first applied to downsample the feature map. Then, a multi-branch feature learning (MBFL) module is employed to learn diverse feature representations or perform specific tasks. The Conv operation, as shown in Fig. 2(b), consists of a 3×3 convolution, a Batch Normalization layer, and a SiLU activation function. The specific calculation method is as follows:

where BN refers to the Batch Normalization operation, $conv2d$denotes the two-dimensional convolution operation.

The MBFL structure, as shown in Fig. 2(c), adopts a residual network architecture. for the input feature $f_i$. It is first split into $f_i^1$ and $f_i^2$ along the channel dimension. The $f_i^2$ is then fed into the multi-branch feature processing block (MBFP) for feature compilation. Finally, the features are concatenated and processed with a Conv operation to obtain the output $O_i$. The specific calculation method is as follows:

where each MBFP Block consists of two layers of multi-branch feature learning operations, connected in series via a residual structure, as illustrated in Fig. 2(c). Each multi-branch feature learning (MBFP) operation, shown in Fig. 3, adopts a multi-branch training and single-path inference strategy to enhance testing performance while reducing model complexity.

We generally aim for the model to achieve global optimization during training to ensure maximum effectiveness during inference. Simultaneously, we desire the model to be lightweight enough to enhance inference speed. Inspired by study [23], MBFP introduces additional convolution types during the training phase to bring the training performance closer to the global optimum. During inference, it employs only a single $k\times k$ convolution to inherit the training parameters, thereby reducing inference complexity while improving training performance. As shown in Fig. 3(a), MBFP utilizes six types of convolutions during training, namely conv-BN, sequential convolutions, average pooling and three types of multi-scale convolutions. During inference, all these convolutions can be replaced by a single $k\times k$ convolution. The underlying principle is as follows:

(1) Conv-BN.

For conv-BN, a convolution is typically followed by a batch normalization operation. For an input $I$ and a convolution operation $F$, the computation process is as follows:

where $*$ represents the standard convolution operation. ${\mu }_j$ and ${\delta }_j$ denote the normalization mean and standard deviation for the $j$ channel, while ${\gamma }_j$ and ${\beta }_j$ represent the batch normalization scaling factor and bias. By merging these, the convolution kernel $F$ and BN parameters are recalculated into $F\text{'}$ and $b\text{'}$, allowing the BN layer to be removed during inference while achieving the same functionality with a single convolution. The specific computation method is as follows:

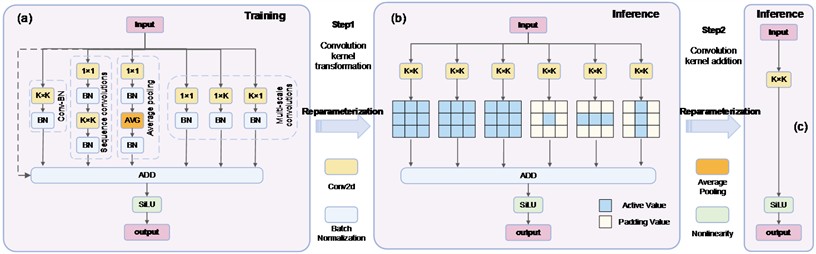

Fig. 3Multi-branch feature processing operation (MBFP): a) the MBFP structure during training, b) equivalent substitution diagram of each branch, c) MBFP structure during inference

(2) Sequential convolutions.

The sequential convolutions structure consists of a 1×1 convolution kernel for channel adjustment and a $K\times K$ convolution kernel for feature extraction. The computation process is as follows:

where $F_1$, $F_2$, $b_1$, and $b_2$ represent the 1×1 convolution, $K\times K$ convolution, and their respective biases. The combined effect of these two convolution layers can be represented by an equivalent $K\times K$ convolution kernel and bias. The calculation methods for the new convolution kernel $F\text{'}$ and bias $b\text{'}$ are as follows:

where $TRANS\left(F_1\right)$ represents the transposed version of the 1×1 convolution kernel, used for channel combination.

(3) Average pooling.

The average pooling operation is equivalent to a special convolution. When the pooling kernel is $K$, the replaced convolution kernel becomes a smoothed version of the identity matrix, represented by $1/K^2$ for averaging. This allows average pooling operations to be replaced with convolutions, unifying the computational framework as follows:

where $d$ and $c$ represent the output and input channel indices, while $u$ and $v$ denote the row and column indices of the convolution kernel.

(4) Multi-scale convolutions.

For multi-scale convolutions, smaller kernels can be expanded into larger ones via zero padding, enabling unified representation of multi-scale features. The calculation for the new convolution kernel is as follows:

where $k_h$ and $k_w$ represents the height and width of the original convolution kernel.

During inference, as shown in Fig. 3(b), the series of convolutions in the six branches can all be replaced with $K\times K$convolutions. Since multiple $K\times K$ convolutions in parallel are equivalent to a single-channel $K\times K$ convolution, the final inference adopts the $K\times K$ Conv-SiLU structure shown in Fig. 3(c).

2.3. Multidimensional spatial feature aggregation network

As shown in Fig. 4, the multidimensional spatial feature aggregation network adopts an FPN-PAN feature fusion architecture. For the three smallest-resolution feature layers input by the feature extraction network, the Global and Local Aggregation Module (GLAM) is applied to fuse their global and local information. The fused three feature layers are then further processed for multi-scale fusion using a bottom-up Feature Pyramid Network (FPN) [13] structure. To prevent information loss during the FPN cascading process and to retain more detailed information, a Path Aggregation Network (PAN) [14] structure is employed to cascade and concatenate the features in a top-down manner.

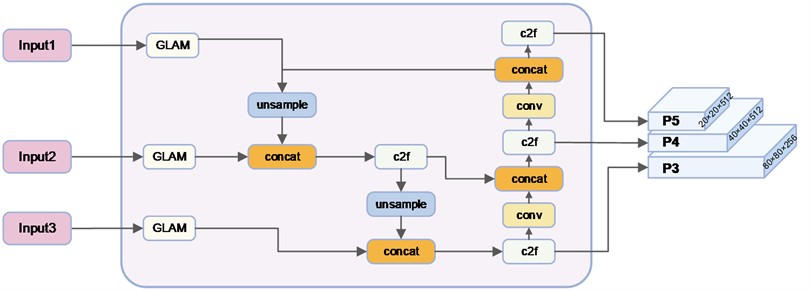

Fig. 4Multidimensional spatial feature aggregation network (MS-FAN)

The GLAM module, as shown in Fig. 5, divides the input feature $X\in R^{C\times H\times W}$ evenly along the channel dimension into sub-features $X_1$, $X_2\in R^{\frac{C}{2}\times H\times W}$. These sub-features are then fed into the global feature extraction module (GFE) and local feature extraction module (LFE), respectively, for feature compilation. The compiled features $X_1\text{'}$, $X_2\text{'}\in R^{\frac{C}{2}\times H\times W}$ are obtained. They are concatenated and further fused using a 1×1 convolution. The specific calculation method is as follows:

where $Y$ represents the output features after global and local aggregation. $GFE\left(\right)$ and $LFE\left(\right)$ refer to the global feature extraction module and local feature extraction module, respectively.

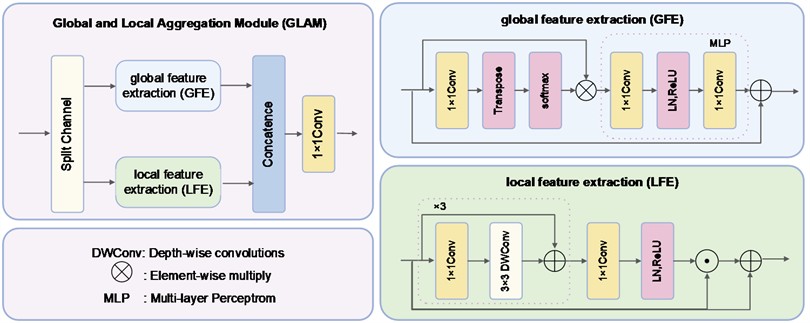

Fig. 5Global and local aggregation module (GLAM)

Since the Vision Transformer architecture focuses more on the global semantic information of the feature map, while convolution emphasizes the detailed texture information of the feature map. The GFE adopts an attention-based computation approach, and the LFE utilizes depth wise convolution to extract local semantic information. The specific calculation method for GFE is as follows:

where $X_1^{Att}$ is the feature vector after the attention operation. $T\text{ranspose}$ represents the transposition operation. MLP corresponds to a 1×1 convolution. $LN$ refers to the linear layer operation. $RELU$ is the activation function. The LFE effectively extracts texture details from the feature map through three layers of depthwise convolution. The specific calculation method is as follows:

where $\delta$ is the activation function. $F_{DWC}$ represents the depthwise convolution module operation. The specific calculation method is as follows:

where $DWC$ represents a 3×3 depthwise convolution operation.

3.1. Data processing

The dataset used in this experiment focuses on urban traffic and includes 8,000 images captured at various intersection scenes. Samples from the COCO and KITTI datasets were incorporated to enhance the robustness and generalization of the model. This ensured the diversity and representativeness of the dataset. Object annotations were performed using the LabelImg software, and targets were classified into six categories: pedestrian, bicycle, bus, car, motorcycle, and truck. The dataset was divided into training and validation sets in a 7:3 ratio. A solid foundation was provided for training and evaluating the model in diverse real-world scenarios.

The COCO-pose dataset was designed for human pose estimation tasks, containing over 250,000 labeled person instances. Images were collected from diverse environments and activities to ensure variability and robustness. Key points were annotated for 17 body parts, including the head, shoulders, elbows, and knees. The dataset was split into training, validation, and testing sets to facilitate comprehensive model evaluation.

3.2. Experimental parameter details

The model training was conducted on the AutoDL server platform. The hardware environment comprised an AMD EPYC 9754 128-core processor as the CPU and an NVIDIA GeForce RTX 4090D GPU with 24GB of memory. The software environment was configured with the Ubuntu 20.04 operating system, CUDA 11.8 toolkit, and PyTorch 2.0 deep learning framework. The detailed training parameters are summarized in Table 1. The input resolution was set to 640×640, with a batch size of 32. The SGD optimizer was employed and configured with an initial learning rate and final learning rate of 0.01. To ensure adequate model fitting, the number of training epochs was set to 200.

3.3. Object detection comparison experiment

To evaluate the performance of the algorithm, a series of evaluation metrics are introduced. First, mean average precision (mAP) is used as the main metric to measure the detection capability. Higher mAP indicates better detection performance across multiple object classes. Second, floating-point operations (FLOPS) are used to quantify the computational requirements during the inference process, representing the total number of floating-point operations performed. lower FLOPS values indicate lower hardware requirements. In addition, Params are used to describe the total number of weights and biases in the model, with fewer parameters indicating lower computational cost and facilitating deployment on lightweight devices. Frames Per Second (FPS) is introduced to assess the model’s real-time processing capability. FPS denotes the number of image frames the model can process per second, directly reflecting its inference speed. Finally, the Average Precision (AP) per class is added to evaluate the detection accuracy of the model for each object class.

To evaluate the performance of the DAFCN network in the object detection task, this experiment combines DAFCN with the YOLOv8s detection head and compares it with several state-of-the-art object detection models, including YOLOv6 [24], YOLOv7 [25], rt-detr [26], and EfficientDet [27]. The best results for each metric are highlighted in bold, as shown in Table 2. The results indicate that YOLOv6 achieves a good balance between inference speed and detection accuracy due to its reduced parameter count and computational requirements, but it struggles with detecting densely packed pedestrians and small vehicles. While YOLOv7 offers faster inference, its detection accuracy still has room for improvement. Rt-detr achieves high detection accuracy through its anchor-free design; however, its large parameter counts and computational cost result in an inference speed of only 64.44 FPS, falling short of real-time detection requirements. EfficientDet provides a relatively balanced performance with a smaller parameter count, yet its detection accuracy lags significantly behind other models. In contrast, the proposed DAFCN model demonstrates outstanding performance, particularly in detecting densely packed pedestrians and small vehicles. It achieves the highest detection accuracy and fastest inference speed while maintaining significantly lower parameter and computational costs compared to other models. Furthermore, DAFCN excels in terms of average precision across all categories, showcasing superior detection capabilities.

In Table 2, the performance of mainstream feature extraction networks is compared with the proposed MBLNet. MBLNet achieves a balance between efficiency and accuracy, delivering 138.5 FPS inference speed and 84.1 % mAP with only 4.16M parameters and 9.9G FLOPs, outperforming EfficientViT, Fasternet, and ConvNeXtV2 in both aspects. In Table 2, the proposed MS-FAN is evaluated against FPN-based feature fusion networks. MS-FAN achieves 84.7 % mAP with 3.15M parameters, 8.7G FLOPs, and an inference speed of 222.7 FPS, significantly surpassing EMBSFPN, ContextGuideFPN, CGRFPN, and TransNeXt in both detection performance and computational efficiency. It can be observed that MS-FAN achieves higher inference speed and detection accuracy. This is accomplished while maintaining low computational complexity. Its performance in feature fusion is particularly outstanding, especially in complex scenarios.

As shown in Fig. 6(a), the horizontal axis represents the number of model parameters, while the vertical axis indicates the mAP. Models closer to the top-left corner are considered to have better performance. Benefiting from its lightweight design, DAFCN achieves the highest detection accuracy with minimal parameters and computational cost. A 4.7 % improvement in mAP is achieved compared to the baseline model YOLOv8. As shown in Fig. 6(b), DAFCN has demonstrated excellent performance across all categories.

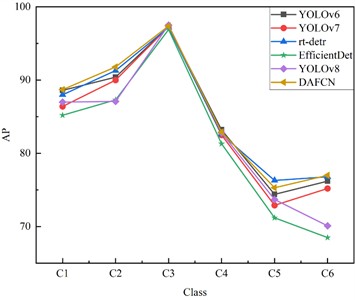

Fig. 6a) Comparison of different model mAPs with parameters, b) comparison of APs per category

a)

b)

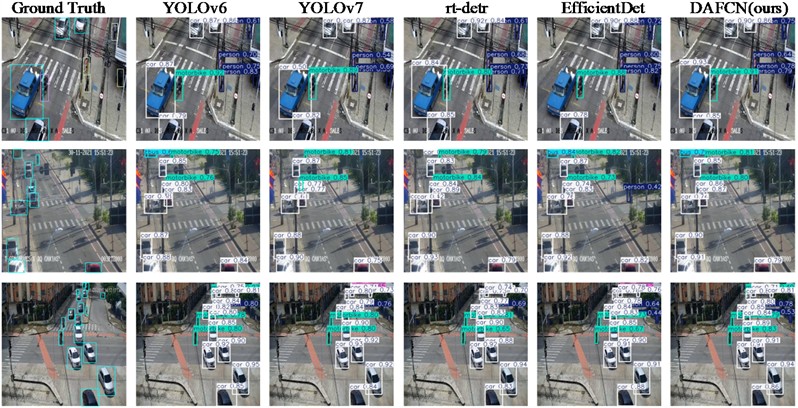

Fig. 7Comparison of detection effectiveness of DAFCN with different obstacle detection algorithms.

The test results of YOLOv6, YOLOv7, rt-detr, EfficientDet, and DAFCN on an urban traffic dataset are compared in Fig. 7. YOLOv6 mainly relies on the basic up-sampling and down-sampling operations to realize the fusion of features at different scales, and when dealing with complex scenes, it is unable to adequately integrate semantic information at different levels, resulting in the occurrence of wrong detections. YOLOv7 adopts a relatively complex and inflexible multi-scale feature fusion strategy, which leads to the difficulty of effectively integrating different levels of feature information, and in turn affects the model's detection accuracy. Rt-detr feature fusion process is less adaptive to small sample data, leading to its missed detection. efficientDet's feature fusion is not flexible enough when dealing with complex scenes, leading to different degrees of missed detection of small targets. In contrast, DAFCN effectively detects small objects by fully integrating deep and shallow features. This proves the effectiveness and superiority of DAFCN.

3.4. Human pose estimation comparison experiment

To evaluate the performance of the DAFCN network in pedestrian pose estimation, this experiment combines DAFCN with the YOLOpose detection head and compares it with several pose estimation models, including EfficientHRNetH0 [30], OpenPose [31], and YoloPose [32]. The results are shown in Table 3.

Among them, EfficientHRNetH0 is ineffective in small target detection due to its high model complexity and insufficient feature fusion. OpenPose uses VGG as the backbone network, but its network structure is deeply hierarchical and prone to gradient vanishing, which leads to a large amount of computation and poor detection accuracy. YoloPose is based on the YOLOv3 algorithm, which is easily affected by background noise and occlusion. The highest mAP of 86.2 % is achieved by DAFCN. Meanwhile, its parameter count (13.6M) and computational cost (33.4G FLOPs) are the lowest. The ability to achieve high detection accuracy with minimal complexity is demonstrated by the proposed model. In Table 3, various feature extraction backbones are compared. Excellent performance is exhibited by the proposed MBLNet. Among them, EfficientViT has a complex model structure with multi-branch and multi-scale design, which makes the training and optimization process cumbersome and requires high computational resources. Fasternet focuses on model lightweighting and speed enhancement, and has limited feature extraction capability. ConvNeXtV2 is not robust enough in feature extraction, and cannot stably extract high-quality features in the face of complex and changing scenes. vanilanet has a simple model structure, which is insufficient in feature extraction when dealing with complex tasks, making it difficult to effectively capture important features in the data and affecting model performance. features in the data, which affect the model's performance. An mAP of 85.8 % is achieved by MBLNet with only 4.87M parameters and 10.94G FLOPs. It outperforms other backbone networks, including EfficientViT, Fasternet, and ConvNeXtV2, in both efficiency and accuracy. Finally, a comparison of feature fusion networks is shown in Table 3. Among them, EMBSFPN mainly relies on basic feature splicing and convolution operations, which easily leads to the loss of feature information and inadequate fusion, and thus affects the model's accurate target localization and classification effect. ContextGuideFPN has a limited range of context information capture when facing multi-scale targets and complex backgrounds, making it difficult to adequately cover target features at different scales. CGRFPN cannot finely adapt to the specific feature requirements of each pixel point, resulting in poorly targeted feature fusion. TransNeXt is prone to computational bottlenecks when processing high-resolution feature maps, resulting in lower feature fusion efficiency and affecting the overall detection speed. The proposed MS-FAN achieves 85.2 % mAP with only 3.65M parameters and 8.82G FLOPs. It outperforms EMBSFPN, ContextGuideFPN, CGRFPN, and TransNeXt. Superior detection accuracy and computational efficiency are exhibited by MS-FAN.

The detection results of EfficientHRNetH0, OpenPose, YoloPose, and DAFCN are compared in Fig. 8. Missed and incorrect detections are observed in EfficientHRNetH0 due to insufficient feature representation. OpenPose fails to capture accurate pose structures in cluttered scenes, leading to errors. YoloPose, while faster, struggles with complex scenarios involving overlapping human poses and occlusions, which results in misdetections and incomplete pose estimations. In contrast, DAFCN achieves superior detection performance by leveraging its robust feature extraction and fusion capabilities. This highlights the effectiveness and reliability of DAFCN in challenging scenarios.

Fig. 8Comparison of detection effectiveness of DAFCN with different obstacle detection algorithms
